Step by Step Architectural Diagnostics: A Professional Guide
Step by Step Architectural Diagnostics: A Professional Guide
TL;DR:
- Architectural diagnostics follow a staged, evidence-based process from scoping to design coordination to ensure accuracy and traceability. Utilizing non-destructive evaluation tools and structured information governance, professionals can prevent data gaps and compliance issues. Modish Global Inc.'s diagnostic intelligence engine uniquely enhances visualization and traceability, supporting cost-effective, defensible building assessments.
Step by step architectural diagnostics is the systematic process of evaluating building integrity and performance through escalating investigative stages to deliver traceable, evidence-based insights for architects and engineers. Known formally as Architectural Diagnostic Intelligence™, this methodology moves from non-intrusive desk studies through physical inspection, sampling, and laboratory analysis to final design coordination. Frameworks like ISO 19650 and IStructE guidelines govern how evidence is collected, managed, and acted upon. Modish Global Inc.'s DesignVault 3D™ and 3D Transformative Digest™ represent the current frontier of how diagnostic findings are visualized and delivered at federal submission grade.
What are the key stages in step by step architectural diagnostics?

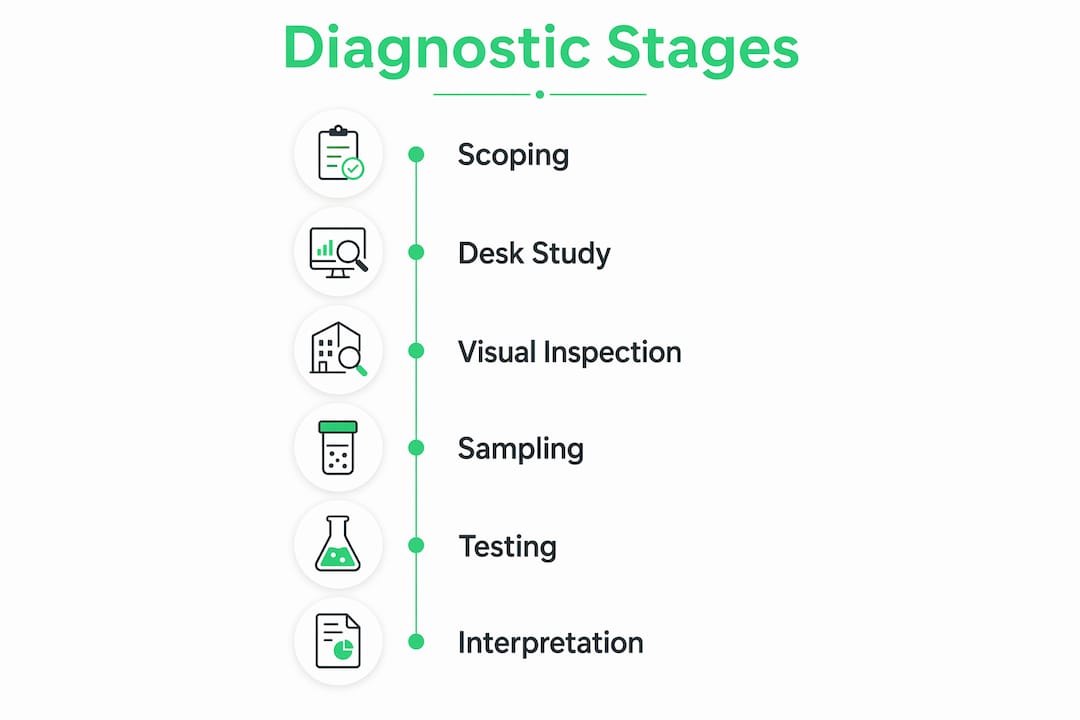

The six diagnostic stages defined by IStructE guidelines are scoping, desk study, visual inspection, sampling and testing, interpretation, and detailed design coordination. Each stage builds directly on the evidence produced by the one before it. Skipping a stage does not save time. It creates data gaps that force expensive rework downstream.
The logic of the sequence is deliberate escalation. Tiered investigative intensity starts with non-intrusive methods and advances to invasive tests only when preliminary data justifies the cost and disruption. This approach protects both the building and the project budget. A desk study that surfaces a historic drainage failure, for example, immediately redirects where the visual inspection team focuses its effort.
Here is how the stages function in sequence:
- Scoping — Define the diagnostic objectives, access constraints, and information requirements before any site work begins.
- Desk study — Review as-built drawings, planning records, maintenance logs, and any prior condition surveys.
- Visual inspection — Conduct a systematic walk-through, cataloging defects with photographs, sketches, and referenced measurements.
- Sampling and testing — Extract material samples and deploy non-destructive evaluation tools where visual evidence warrants further investigation.
- Interpretation and analysis — Correlate all findings, separate root causes from symptoms, and produce an engineering judgment.
- Design coordination — Translate the analysis into remedial specifications, compliance documentation, and visualization deliverables.
The eight-step retro-commissioning process developed by EEI Building Performance reinforces a critical discipline within this sequence: goal setting and diagnostics must precede corrective actions. Professionals who jump to remediation before completing interpretation routinely address symptoms rather than causes.
Pro Tip: Document the scoping agreement in writing before mobilizing any site team. A signed scope statement prevents scope creep and creates the first traceable record in your evidence chain.
The accuracy of any systematic architecture evaluation depends directly on the quality of its instrumentation. Non-destructive evaluation methods provide quantitative data on internal building conditions without material disruption, and GPR, ultrasonic pulse velocity, and half-cell potential mapping are the three most widely deployed techniques in structural diagnostics today. Each targets a different failure mode: GPR maps subsurface voids and rebar position, UPV measures concrete integrity, and half-cell potential identifies active corrosion in reinforced elements.
Beyond instrumentation, access technology determines what the inspector can actually see. Mobile Elevated Work Platforms, drones with thermal imaging payloads, and borescope cameras each extend the diagnostic reach into areas that would otherwise require destructive opening-up works. Thermal imaging is particularly effective at identifying moisture ingress and thermal bridging in envelope assemblies before those conditions become structural concerns.
| Technology |
Primary application |
Invasiveness |
| Ground Penetrating Radar (GPR) |
Subsurface mapping, rebar location |
Non-destructive |
| Ultrasonic Pulse Velocity (UPV) |
Concrete integrity assessment |
Non-destructive |
| Half-cell potential mapping |
Corrosion detection in reinforced concrete |
Non-destructive |
| Thermal imaging |
Moisture, thermal bridging, envelope defects |
Non-destructive |
| Core sampling |
Material composition, carbonation depth |
Minimally invasive |
Modish Global Inc.'s DesignVault 3D™ engine integrates diagnostic findings directly into federal submission-grade visualization, producing 192 corrective visualization options per Space. This capability closes the gap between raw field data and the design coordination stage, which is where most diagnostic workflows lose fidelity. The 3D Transformative Digest™ then distributes those findings across ZINIO, PressReader, Magzter, SyndiGate, and Newstex to over 3 million readers in 150 countries, establishing a publication-grade record of the diagnostic intelligence produced.
Pro Tip: Align your digital documentation workflow with ISO 19650 Common Data Environment states from day one. Retrofitting CDE governance onto a completed diagnostic project is far more costly than building it in at the scoping stage.
Visual inspection is the diagnostic stage where professional judgment is most exposed. A poorly structured inspection produces anecdotal observations. A well-structured one produces a traceable evidence chain linking photographs, marked sketches, and documented sampling times that can withstand engineering scrutiny and legal challenge.
Execute visual inspections in this order:
- Prepare a pre-inspection checklist referencing the applicable standards, IStructE guidance, and any building-specific risk factors identified during the desk study.
- Inspect accessible areas first, moving systematically from exterior envelope to structural frame to building services zones.
- Photograph every defect with a scale reference and a location marker tied to a pre-numbered drawing grid.
- Record restricted access zones explicitly. Undocumented access limitations are a common source of liability in post-construction defect claims.
- Trigger sampling decisions based on visual evidence, not assumption. Staged access at foundation, structural shell, and pre-drywall phases catches latent defects that a single final inspection will miss.
The comparison below clarifies when non-invasive documentation is sufficient versus when sampling is warranted:
| Condition observed |
Recommended response |
Justification basis |
| Surface cracking, no pattern |
Photographic record, monitor |
Visual evidence only |
| Map cracking with spalling |
UPV testing, carbonation check |
Pattern suggests systemic cause |
| Staining with active moisture |
Thermal imaging, core sample |
Source identification required |
| Structural deflection |
Full structural assessment |
Safety-critical escalation |
Separating system performance measurement from diagnostics improves accuracy and prevents premature corrective decisions. A building diagnostics guide that conflates observation with interpretation produces findings that cannot be defended. Record what you see. Analyze it separately.
ISO 19650-based CDE governance prevents stale or missing evidence from undermining compliance diagnostics even when the physical building is sound. This is the insight most diagnostic teams miss: information failure is as damaging as structural failure when a project reaches regulatory review or litigation.
The ISO 19650 framework requires three governing documents before diagnostic data exchange begins:
- Exchange Information Requirements (EIR) — defines what information the client needs, in what format, and at which delivery milestones.
- BIM Execution Plan (BEP) — documents how the diagnostic team will produce, manage, and deliver that information.
- Master Information Delivery Plan (MIDP) — schedules every information deliverable across the project timeline.
CDE lifecycle states govern how diagnostic data moves through the workflow. Work in Progress data stays within the producing team. Shared data is available for coordination review. Published data is formally accepted. Archived data is retained for compliance and audit purposes. Each state transition requires a verification step, which is where most teams either build or destroy their audit trail.
Pro Tip: Apply consistent naming conventions to every diagnostic file from day one. A classification system aligned with Uniclass 2015 or OmniClass makes retrieval fast and demonstrates information governance maturity to federal clients and compliance auditors.
ISO 19650 compliance is fundamentally about information auditability, not simply owning BIM models. Teams that treat CDE governance as an administrative afterthought consistently produce diagnostic records that fail at the compliance review stage.
Key takeaways
Effective architectural diagnostics require staged escalation, traceable evidence chains, and ISO 19650 information governance working together from scoping through design coordination.
| Point |
Details |
| Stage before you excavate |
Complete desk study and visual inspection before committing to invasive sampling to protect cost and data quality. |
| Build the evidence chain early |
Link photographs, sketches, and lab results from the first site visit to support engineering analysis and legal defensibility. |
| Separate observation from interpretation |
Record findings and analyze them in distinct workflow steps to avoid premature or misdirected corrective decisions. |
| Govern information from day one |
Establish EIR, BEP, and CDE states at scoping to prevent compliance failures caused by stale or missing documentation. |
| Deploy NDE before opening up |
GPR, UPV, and thermal imaging reduce the need for destructive investigation and produce quantitative baseline data. |
Why the staged diagnostic model is the only defensible approach
The most common failure I see in architectural diagnostic work is not a missed defect. It is a broken evidence chain. Teams mobilize quickly, photograph what catches the eye, and move directly to remediation recommendations. The result is a report that describes symptoms without establishing cause, and a client who spends money fixing the wrong thing.
The staged model exists precisely to prevent that outcome. When you commit to completing a desk study before touching the building, you arrive at the visual inspection with a hypothesis. When you document every observation against a pre-numbered drawing grid, you create a record that can be interrogated months later by a structural engineer, a compliance auditor, or a federal contracting officer. That traceability is not bureaucratic overhead. It is the product.
What I find genuinely compelling about Modish Global Inc.'s Cinematic Intelligence™ engine is that it operationalizes this discipline at a scale that manual workflows cannot match. Generating 192 corrective visualization options per Space, aligned to federal submission standards, is not a marginal improvement over traditional reporting. It is a categorical shift in what diagnostic intelligence can deliver. The architectural audit process becomes a living, visual record rather than a static PDF.
The challenge the profession still faces is cost calibration. Intrusive investigations are expensive, and clients routinely push back on escalation. The answer is not to skip stages. It is to build the non-invasive case so thoroughly that the escalation decision becomes self-evident from the data.
— Ben
How Modish’s Architectural Diagnostic Intelligence™ supports your workflow
Modish Global Inc. is the only Disability:IN-certified DOBE firm delivering Architectural Diagnostic Intelligence™ at federal submission grade. For architects and engineers working on commercial and federal facilities, the diagnostic intelligence engine identifies structural, environmental, and code compliance failure points before construction commits, then renders corrective solutions across 192 visualization options per Space.
Every Modish engagement counts as Tier 1 diverse spend credit for Fortune 500 supplier-diversity scorecards, and the firm’s SAM.gov registration supports federal sole-source authority under FAR 6.302-1. Engagements begin at $9,500 for single-facility pilots and scale to $150,000+ annual enterprise licenses. Whether you are managing pre-bid evaluation, master planning, or pre-design risk identification, Modish’s diagnostic infrastructure delivers the evidence-grade intelligence your project requires.
FAQ
What is step by step architectural diagnostics?
Step by step architectural diagnostics is a staged investigative process that moves from scoping and desk study through visual inspection, sampling, analysis, and design coordination to produce traceable, evidence-based assessments of building condition and compliance.
How many stages does a full architectural assessment process include?
IStructE guidelines identify six typical stages: scoping, desk study, visual inspection, sampling and testing, interpretation, and detailed design coordination, each optimized for cost and thoroughness.
Why should non-destructive evaluation precede invasive sampling?
Non-destructive methods like GPR and UPV provide quantitative baseline data without material disruption, allowing engineers to target invasive sampling precisely where evidence warrants it and reducing overall investigation cost.
ISO 19650 requires establishing Exchange Information Requirements, a BIM Execution Plan, and a Common Data Environment with defined lifecycle states to maintain auditability and prevent compliance failures from incomplete documentation.
How does Modish Global Inc. differ from standard diagnostic consultants?
Modish is the only Disability:IN-certified DOBE in architectural diagnostic intelligence, delivering Cinematic Intelligence™ with 192 corrective visualization options per Space at federal submission grade, a capability unavailable through any other supplier-diversity-certified firm.
