TL;DR:
- The facility visualization process involves creating accurate, data-rich 3D models to validate design precision and compliance before construction. It requires careful planning, proper hardware and software tools, and owner-aligned metadata standards to produce useful operational and regulatory insights. Proper execution focuses on schema definition, schedule integration, and quality control, transforming models into actionable asset management tools rather than just visuals.
The facility visualization process is defined as the structured creation of accurate, data-rich 3D representations of physical facilities to validate design precision and code compliance before construction commits. In architecture and engineering practice, this process spans 3D laser scanning, Building Information Modeling (BIM) in tools like Autodesk Revit and Navisworks, and metadata integration aligned to owner and regulatory standards. Modish Global Inc.'s Architectural Diagnostic Intelligence™ extends this workflow further, identifying structural and environmental failure points and rendering corrective solutions at federal submission grade. For A/E professionals working through planning and bidding stages, the facility visualization process is not a rendering exercise. It is a compliance instrument.
A credible facility visualization workflow begins before a single scan is taken. Defining your Level of Detail (LOD) target, establishing a scan strategy, and aligning your data schema with owner requirements are decisions that determine whether the final model is a trusted compliance asset or an expensive geometry file.
Hardware requirements for professional-grade facility design visualization include:
- 3D laser scanners such as Leica BLK360 or FARO Focus for interior and exterior point cloud capture
- Drones equipped with LiDAR or photogrammetry payloads for roof-level and site geometry
- Mixed Reality (MR) and Augmented Reality (AR) devices such as Microsoft HoloLens 2 for field verification and overlay workflows
Software ecosystem for the full scan-to-BIM pipeline:
- Autodesk ReCap for point cloud registration, cleaning, and segmentation
- Autodesk Revit for parametric BIM modeling from registered point clouds
- Autodesk Navisworks for clash detection, model federation, and 4D schedule linkage
- AI-assisted tools for automated element recognition and anomaly flagging

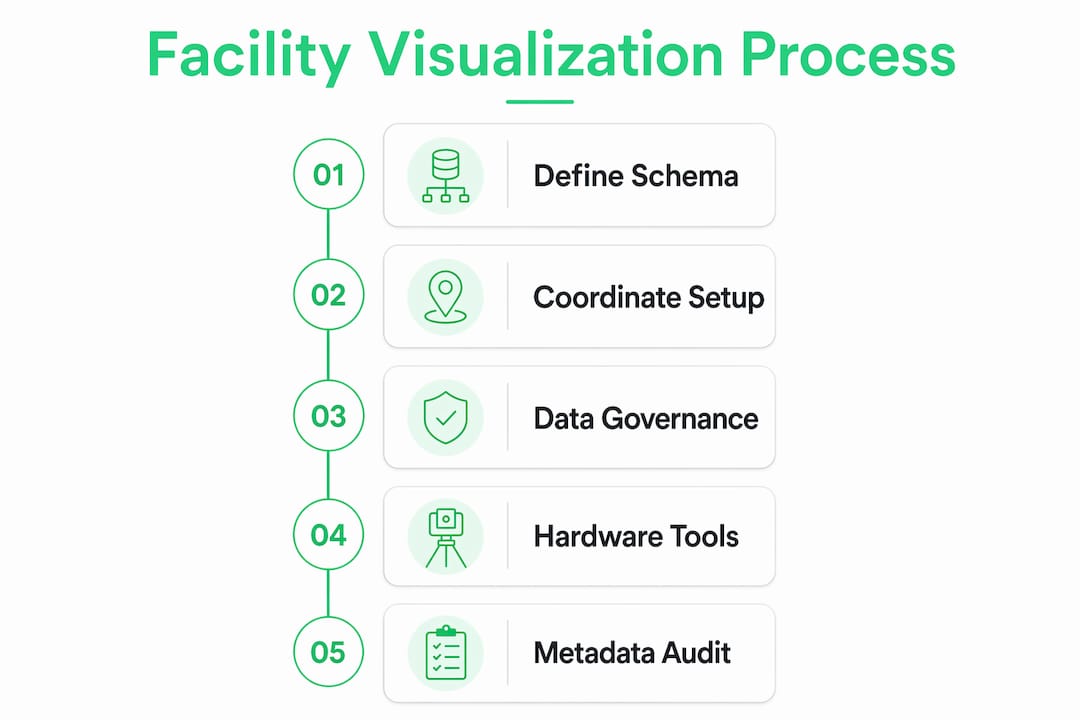

Effective facility visualization depends as much on data governance and metadata standards as on hardware capabilities. This means defining your asset classification schema and parameter naming conventions at project start, not after modeling is complete. Late normalization causes traceability loss and delays that compound through every downstream phase.
Coordinate setup is equally non-negotiable. Establishing a shared coordinate system and project base point in Revit before importing any point cloud data prevents geospatial drift across federated models. For federal projects, this alignment must conform to the contracting agency’s BIM Execution Plan (BEP) requirements.
Pro Tip: Define your owner-aligned asset parameter schema before the first scan. Retrofitting metadata onto a completed model costs three to five times more in labor than building it in from the start.
| Prerequisite |
Purpose |
| LOD definition |
Sets modeling depth expectations for each project phase |
| Scan strategy |
Determines scanner positions to minimize occlusions |
| Asset schema |
Aligns parameter naming with owner and compliance standards |
| Coordinate setup |
Prevents geospatial drift in federated Revit models |
How to execute the facility visualization process step by step
The scan-to-BIM workflow follows a defined sequence. Deviating from it introduces errors that propagate forward and are expensive to correct at later phases.
-
Site analysis and scan planning. Walk the facility to identify geometry complexity, access constraints, and high-occlusion zones such as mechanical rooms and interstitial spaces. Document areas where archival drawings will supplement scan data.
-
3D laser scanning. Execute multiple scan positions to achieve full coverage. Overlap between scan positions should be sufficient to allow accurate registration. For large federal facilities, this often means hundreds of individual scan setups across multiple site visits.
-
Point cloud registration and cleaning in Autodesk ReCap. Import raw scans, register them to a unified coordinate system, remove noise and artifacts, and segment the cloud by building system or floor level. Clean point clouds are the foundation of accurate BIM modeling.
-
Import into Autodesk Revit and begin parametric modeling. Attach the registered point cloud as an underlay. Model structural elements, architectural finishes, MEP systems, and site features using Revit’s parametric families. Every modeled element should carry the metadata defined in your asset schema.
-
Apply LOD strategy by project phase. LOD 200 suits early massing and planning. LOD 300 supports construction documentation. LOD 400 is required for fabrication-level detail. Applying the wrong LOD wastes modeling hours and creates false precision where it is not needed.
-
Quality control against the point cloud. Overlay the completed model against the source point cloud in Navisworks or within Revit’s point cloud view. Resolve deviations, address occluded areas using archival data or supplemental scans, and document all assumptions.
-
Deliver documentation. Export plans, sections, and elevations from Revit. Provide IFC files for interoperability and RVT files for owner use. Federal submissions typically require COBie data sheets alongside geometric deliverables.
Scan-to-twin projects that rely on owner-aligned standards produce normalized asset information models reflecting as-built conditions with verified, photo-backed evidence. This distinction matters for compliance reviews where geometric accuracy alone is insufficient.
Pro Tip: Run a clash detection pass in Navisworks at LOD 300 before finalizing documentation. Hard clashes between structural and MEP elements caught at this stage cost a fraction of what they cost to resolve in the field.
| LOD Level |
Application |
Typical Use Case |
| LOD 200 |
Approximate geometry |
Schematic design, massing studies |
| LOD 300 |
Precise geometry |
Construction documents, permit sets |
| LOD 400 |
Fabrication detail |
Shop drawings, prefabrication |
How does 4D BIM improve compliance and constructability review?
4D BIM visualization links 3D BIM objects to scheduled tasks, enabling simulation of construction sequences to detect spatial-temporal conflicts before site work begins. This moves planning from static Gantt charts to dynamic visual sequences where teams can watch a facility build itself, identify access conflicts, and test logistics before a single dollar of construction is committed.
The compliance and constructability benefits are direct:
- Spatial-temporal conflict detection identifies when two trades need the same space at the same time, or when equipment delivery sequences are physically impossible given the modeled geometry
- Logistics planning tests crane reach, material staging zones, and temporary access routes against the 3D model before the bid is finalized
- Phasing visualization communicates construction sequences to owners, inspectors, and contracting officers in a format that requires no BIM literacy to interpret
- Pre-bid risk identification surfaces scope gaps and sequencing assumptions that would otherwise surface as change orders
Credible 4D BIM depends on a valid construction program with a defined work breakdown structure and logical activity sequencing. Linking a 3D model to a poorly structured schedule produces unreliable visualization. The highest value comes from rehearsing high-risk construction scopes, not from animating the entire project.
Mixed Reality devices extend this further. Microsoft HoloLens 2 enables overlaying BIM data onto real-world inspection workflows, enhancing maintenance visualization accuracy through scenario-based inspection tied to existing building documentation. For federal facilities with active operations, this capability allows inspectors to verify as-built conditions against the model without shutting down occupied spaces.
“Visualization fidelity alone is insufficient without semantic data alignment.” Integrating asset classification and metadata transforms a descriptive digital twin into a compliance-grade operational platform. Without it, even a photorealistic model cannot answer the questions that matter during a federal audit or a Fortune 500 procurement review.
What common challenges arise during facility visualization?
Every A/E team encounters the same category of problems. Knowing them in advance is the difference between a recoverable delay and a project-defining failure.
-
Occlusions and incomplete scan data. Dense mechanical rooms, occupied spaces, and below-grade infrastructure routinely block scanner line of sight. Mitigate with additional scan positions, supplemental drone passes, and archival drawing overlays where physical access is impossible.
-
Point cloud noise and artifacts. Moving objects, reflective surfaces, and glass produce false data points that corrupt registration. ReCap’s noise filtering tools address most cases, but manual review of high-artifact zones is non-negotiable for federal-grade deliverables.
-
LOD versus performance trade-offs. User-centric model navigation and tailored LOD management determine adoption success of operational visualization tools. A model with excessive geometric detail becomes unusable for facility managers who need fast, intuitive access to equipment locations and maintenance records.
-
Metadata completeness failures. XR deployments commonly fall short by limiting integration to geometric overlays without full operational metadata, reducing effectiveness in maintenance and safety decisions. Define your metadata requirements at project kickoff and audit completeness before final delivery.
-
Geospatial coordinate drift. Federated models from multiple disciplines frequently arrive with misaligned coordinate systems. Establish a single shared coordinate file in Revit and require all discipline leads to confirm alignment before model federation.
Pro Tip: Assign one team member as the metadata compliance lead. This person owns the asset schema, audits parameter completeness at each LOD milestone, and signs off before any model is delivered to the owner or contracting officer.
Key takeaways
The facility visualization process succeeds when geometric accuracy, owner-aligned metadata, and schedule logic are integrated from project start, not assembled after modeling is complete.
| Point |
Details |
| Define schema before scanning |
Owner-aligned asset parameters set at kickoff prevent costly late normalization. |
| Match LOD to project phase |
Applying LOD 300 precision to schematic work wastes hours and creates false accuracy. |
| 4D BIM requires a credible schedule |
Linking a model to a flawed program produces unreliable sequence visualization. |
| Metadata drives compliance value |
Geometric fidelity without semantic data cannot support federal audits or operational decisions. |
| QC against the point cloud |
Model-to-cloud verification in Navisworks catches deviations before documentation is finalized. |
What I’ve learned about visualization that most guides won’t tell you
The A/E industry treats facility visualization as a deliverable. Modish treats it as a diagnostic instrument. That distinction changes everything about how you structure the work.
After working across federal facilities and Fortune 500 campuses, the pattern is consistent: teams invest heavily in scan hardware and modeling hours, then deliver a geometrically accurate model that no one can use operationally because the metadata is incomplete or the LOD is wrong for the audience. A digital twin with 85% user satisfaction and a 30% reduction in fault identification time does not happen because the geometry is beautiful. It happens because the navigation is intuitive and the data answers real operational questions.
The professionals who get this right focus on two things before anything else: the asset schema and the program logic. Everything else, the scanning, the modeling, the rendering, is execution. Execution without governance produces a file, not a facility intelligence asset. Modish’s Multiplicity Modeling™ and DesignVault 3D™ infrastructure are built on this principle. The architectural visualization best practices that produce federal submission-grade results are not about resolution. They are about traceability.
My recommendation for any A/E team entering a federal pre-bid or master planning engagement: identify your two or three highest-risk construction scopes and build your 4D BIM visualization around those first. Do not animate the entire project. Rehearse the sequences where a conflict would be catastrophic, and let that focused visualization carry the compliance argument.
— Ben
